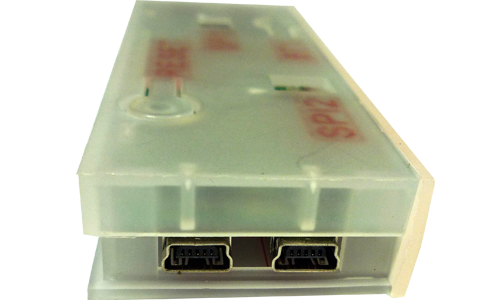

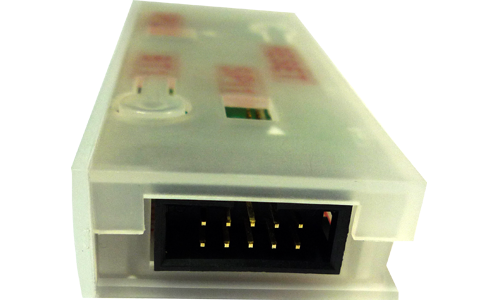

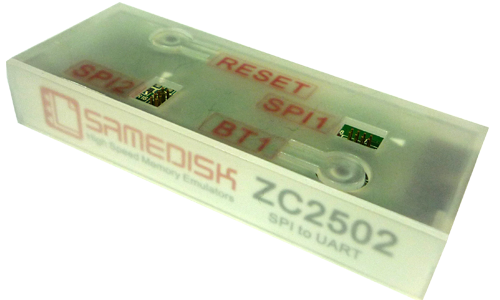

ZC2502 SPI to UART with SPI flash programmer |
|
 |
|
| Specal designed for R&D and testing, easily sent out debug messages via SPI bus to UART with SPI specail A7 command (the same with SAMEDISK's ZC25 series emulator debug SPI to UART function), make sure the R&D and testing people can get the same debug messages, including 1 port SPI flash programmer functuons, nice add on function for testing and debuging. |
|
| Feture |
Support Virtual COM port (FTDI chip)
Support USB 2.0 FS Interface
Support mass storage class
Support SPI A7 command
USB power |
| Specifictaion |
Capacity: SPI Interface, programming capacity up to 256 Mbits
Size: (L)9cm x (W)3.5cm x (H)1.5cm
Weight: 25g
|
| Contents |
ZC2502 Main unit x1
1.8m USB cable x1
2.54mm 2x5 to 1.27mm 2x4 cable x1
SO8W socket adaptor x1
SO16 socket adaptor x1
DIP8 socket adaptor x1
SO8N PCB adaptor x1
1.27mm 2*4 male pin header x2 |
|
|
|
|
