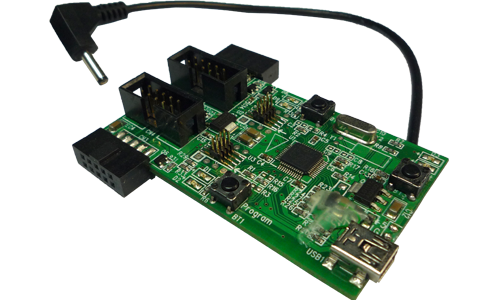

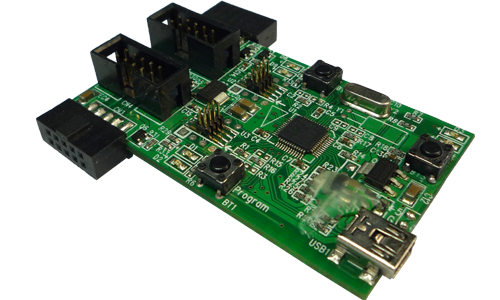

  ZC2511     SPI Flash Programmer

Specail designed fot R&D, testing, manufacturing purpose SPI flash programmer. Read / Write you SPI flash parts without installing any driver and application. Support 2 SPI flash ports, you can programming from USB to SPI1, or to SPI2 or the same time to SPI1+SPI2, stand along copier mode for copying SPI flash parts without connecting to a PC, but an USB hub or +5V DC power supllier. caseless for easily integrated into your ISP tooling for tesing or manufacturing. Getting the fast speed and varies functions in one module.
Feture

Suppport USB 2.0 FS Interface
Support USB mass storage class
Support 2 ports of SPI flash
R/W SPI flash without intalling driver and application
Support stand alone SPI copier mode
Support up to 256M bits SPI flash programming
Tiny PCB size with varies connectors
USB power or +DC 5V

Specifictaion

Interface: SPI Interface
Programming Capacity: up to 256M bits
Size: (L)7cm x (W)5.8cm x (H)1.5cm
Weight: 20g

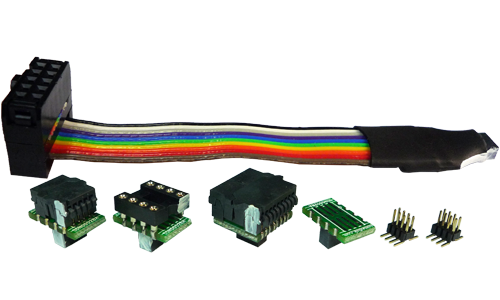

Contents

ZC2511 Main unit x1
USB cable x1
2.54mm 2x5 to 1.27mm 2x4 cable x1
SO8W socket adaptor x1
SO16 socket adaptor x1
DIP8 socket adaptor x1
SO8N PCB adaptor x1
1.27mm 2*4 male pin header x2

Video

ZC2511 programming without driver and application



ZC2511 operated under DOS commnad line mode



ZC2511 programming with SAMEPROG applcation
